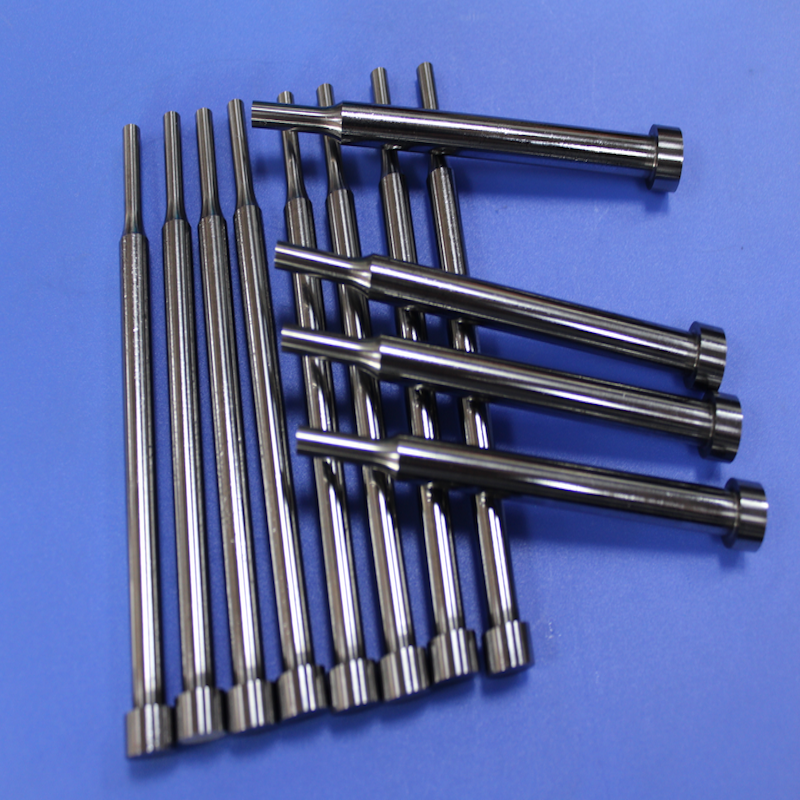

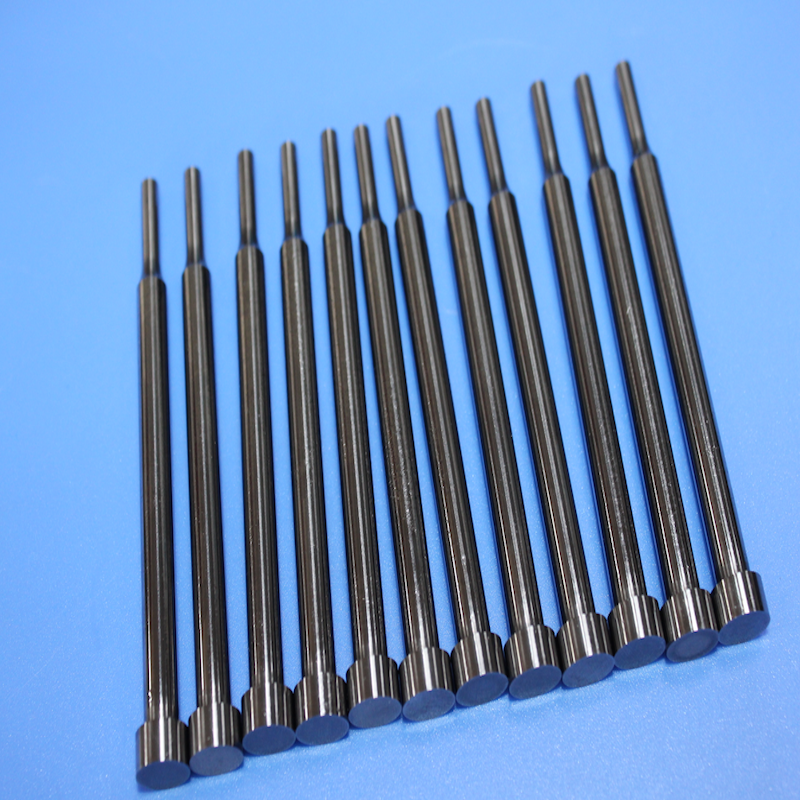

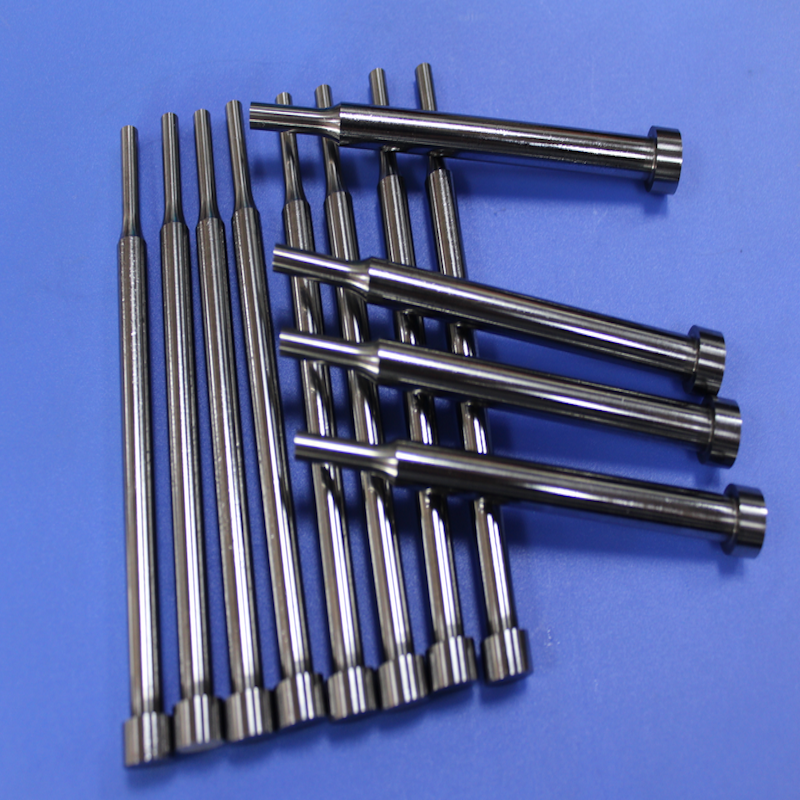

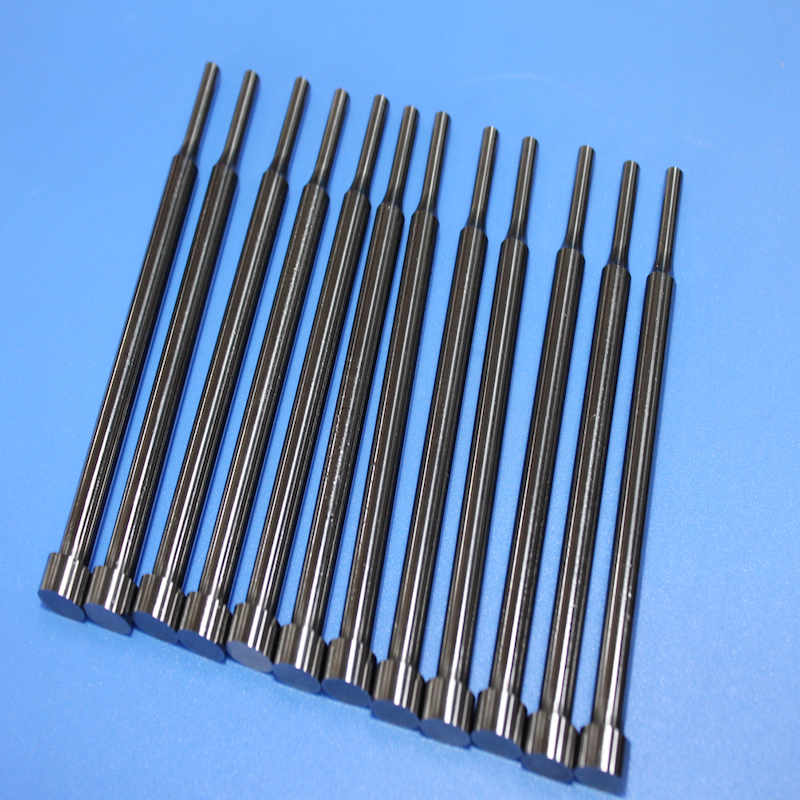

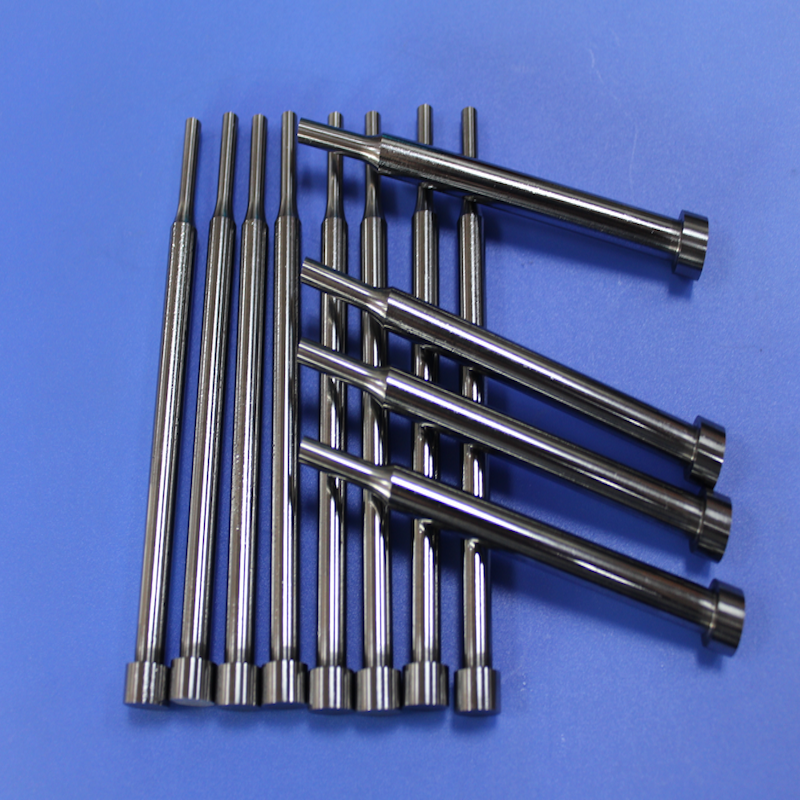

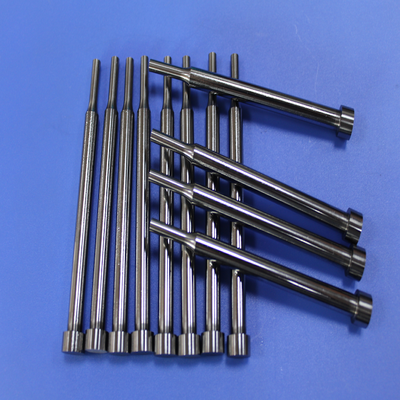

Tungsten Carbide Punch with HRA 89-92 Hardness, ±0.002mm Precision, and 30x Longer Service Life for Stamping & Cold Heading

In high-volume metal stamping and cold forming, punches are critical components that separate, shape, or process material with each press stroke. When punches wear prematurely, fail unexpectedly, or produce inconsistent parts, the costs of downtime, scrap, and lost productivity increase immediately and significantly.

Our tungsten carbide punches are meticulously designed to be reliable and durable core components in your stamping operations. These punches are manufactured from premium cemented carbide using powder metallurgy and precision grinding processes, providing the extremely high hardness, superior wear resistance, and micron-level precision required for high-speed stamping, cold heading, and precision forming applications.

Tungsten carbide punches—also known as cemented carbide punches, cemented carbide stamping punches, or tungsten steel punches—are the industry standard in applications where conventional tool steel punches cannot provide sufficient service life or dimensional stability.

Tungsten carbide (WC-Co) is a composite material produced by powder metallurgy—mixing tungsten carbide powder with a metallic binder (typically cobalt) and sintering at high temperatures. This process yields a material with exceptional mechanical properties:

Our punches are manufactured to tight dimensional tolerances:

• Precision: ±0.002mm standard, ±0.001mm available
• Surface Finish: Ra 0.4 or better, with mirror-polish options
• Roundness: ≤0.001mm
• Concentricity: ≤0.002mm

This level of precision ensures consistent part quality, reduced scrap rates, and reliable performance in high-speed, multi-cavity stamping operations.

Tungsten carbide punches are available in multiple grades, each optimized for specific applications. Common grades include:

• YG6 / YG6X: Higher hardness for precision blanking and thin materials
• YG8: Balanced wear resistance and toughness for general stamping
• YG15 / YG20: Higher toughness for cold heading, heavy stamping, and impact loading

Tungsten carbide punches are essential components across multiple manufacturing sectors:

• Body panel stamping: Blanking and piercing of automotive body panels (0.5-3mm thickness)
• Fastener production: Cold heading of bolts, nuts, screws, and rivets
• Chassis and structural components: High-strength steel stamping

• Connector terminals: High-speed stamping of precision contacts
• Lead frames: Fine blanking of IC lead frames
• Battery components: Stamping of battery jars and electrical contacts

• Metal housings: Stamping of refrigerator, washing machine, and air conditioner panels
• Internal components: Precision blanking of small appliance parts

• High-strength alloys: Stamping of aerospace-grade materials
• Extreme conditions: Tooling for demanding, high-temperature applications

• Surgical instruments: Precision stamping of medical tooling
• Implantable components: High-precision forming of medical parts

• Progressive die stamping: High-speed, multi-station stamping operations
• Extrusion and forming: Cold forming and extrusion tooling

Tungsten carbide punches offer significantly higher hardness (HRA 89-92 vs. HRC 58-62), 5-8× greater wear resistance, and 30× longer service life in continuous operation. They are ideal for high-volume production where tool life and dimensional consistency are critical.

For precision blanking of thin materials, choose YG6 or YG6X (higher hardness). For general stamping, YG8 offers balanced wear resistance and toughness. For cold heading and heavy stamping with impact loading, choose YG15 or YG20 (higher toughness).

We achieve diameter tolerances of ±0.002mm standard, with ±0.001mm available for high-precision applications. Surface finish can reach Ra 0.2 or better with mirror polishing.

In continuous stamping operations, tungsten carbide punches can achieve 30 times the service life of steel punches. Actual lifespan depends on the specific application, material being stamped, and operating conditions.

Yes. Tungsten carbide punches are specifically designed for high-speed stamping operations, maintaining dimensional stability and cutting edge sharpness at speeds of 100-300 strokes per minute.

Yes. We manufacture punches to your exact specifications, including custom tip profiles, stepped designs, and specialized geometries. Please provide your drawing or requirements for a prompt quote.
