รายละเอียดสินค้า:
|
|
| สถานที่กำเนิด: | จีน |
|---|---|
| ชื่อแบรนด์: | Sanxin |
| ได้รับการรับรอง: | ISO9001 |
| หมายเลขรุ่น: | SX-2254 |
|
การชำระเงิน:
|
|
| จำนวนสั่งซื้อขั้นต่ำ: | 1 ชิ้น |
| ราคา: | โปร่ง |
| เงื่อนไขการชำระเงิน: | แอล/C,ที/ที |
| สามารถในการผลิต: | 10,000 ชิ้น / เดือน |
|
ข้อมูลรายละเอียด |
|||
| อุณหภูมิดับ: | 1400 - 1600°ซ | ช่วงชีวิต: | ยาว |
|---|---|---|---|
| ความต้านทานการกัดกร่อน: | สูง | ขนาดเกรน: | ซับไมครอน ถึง หลายไมครอน |
| ออกแบบ: | ปรับแต่ง | วัสดุประสาน: | โคบอลต์หรือนิกเกิล |
| บริการ: | OEM และ ODM | ความแข็งสูง: | HRA92 |
| ความต้านทานแรงดึง: | 1,900 เมกะปาสคาล | วิธีการประมวลผล: | การเผา |
รายละเอียดสินค้า

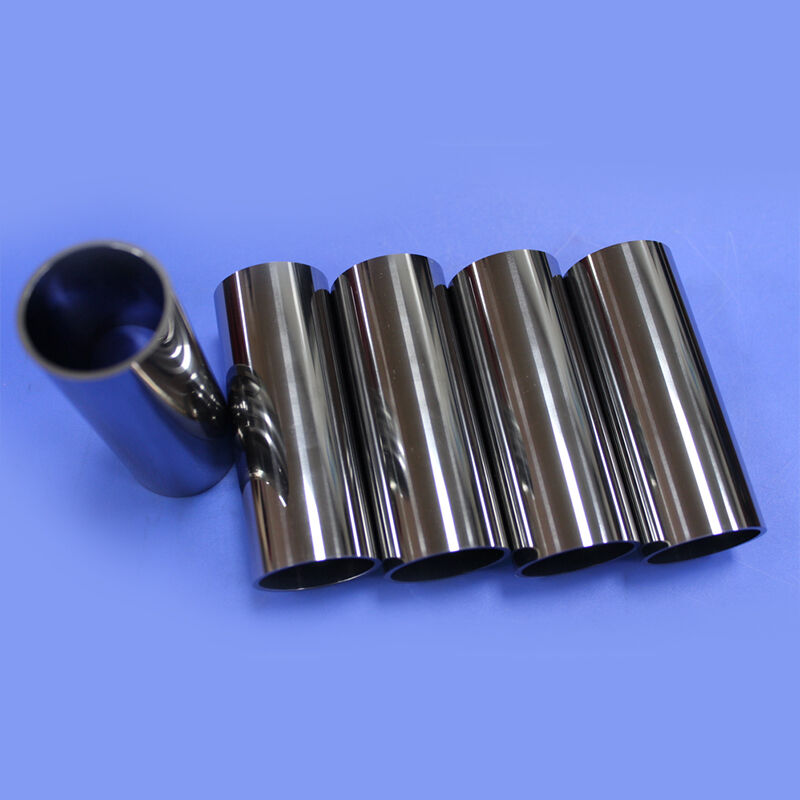

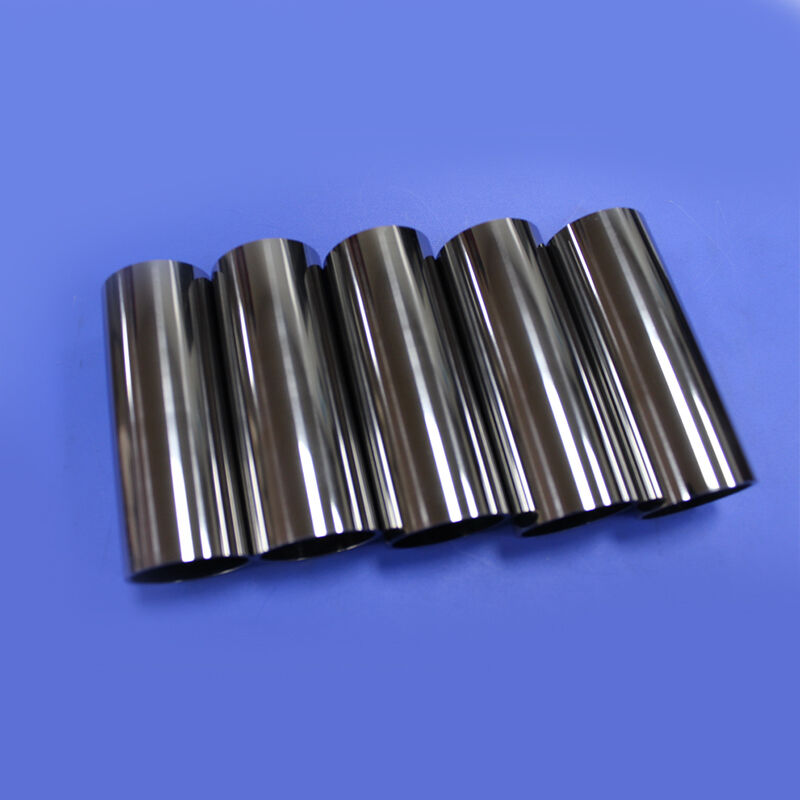

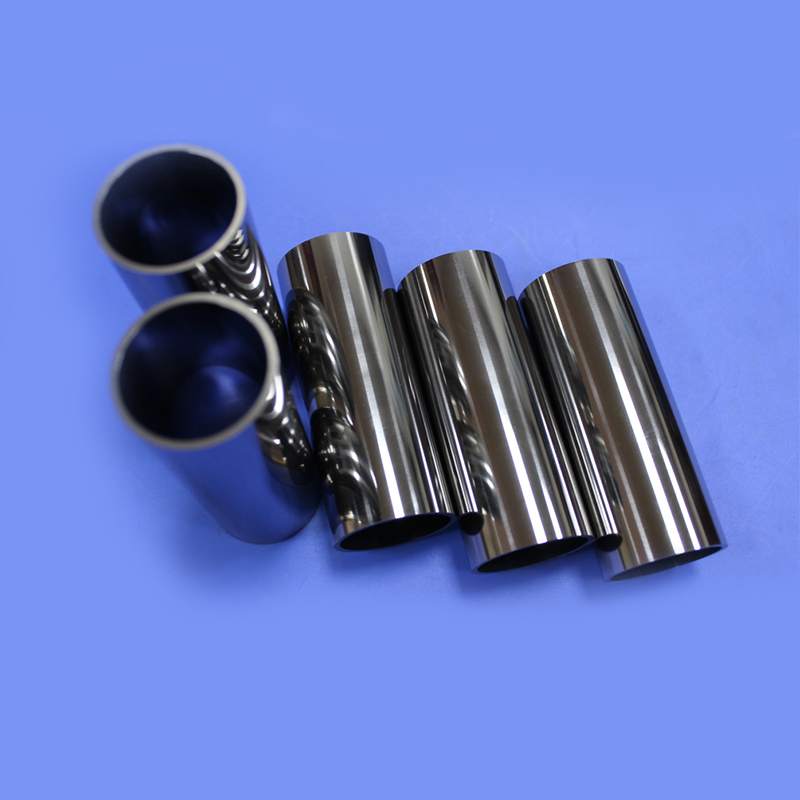

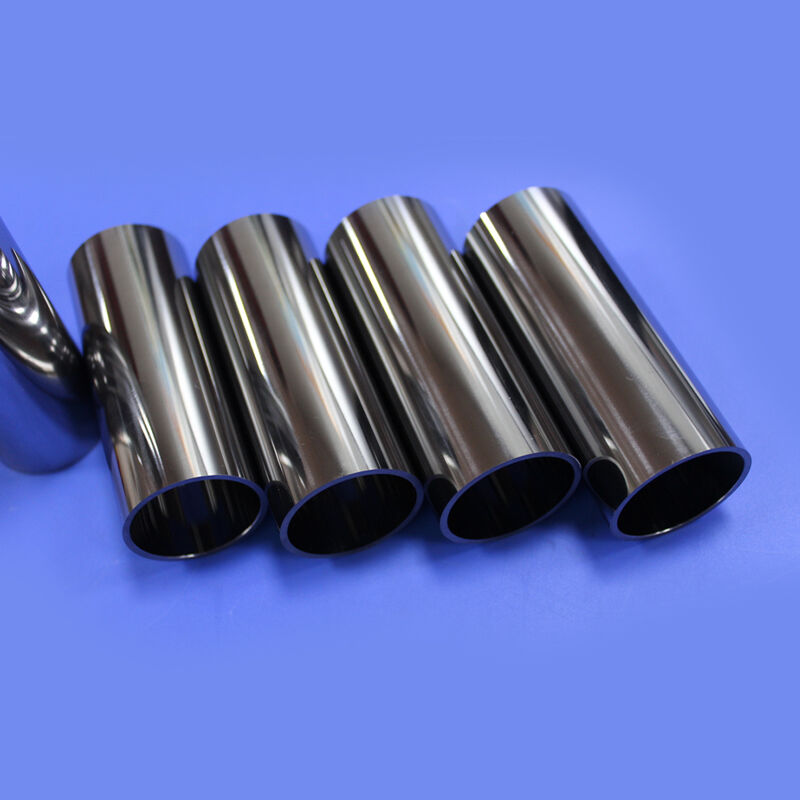

Tungsten Carbide Thin-Wall Bushings are high-performance cylindrical wear-resistant components manufactured through advanced powder metallurgy technology. Composed of tungsten carbide (WC) as the hard phase and cobalt (Co) or nickel (Ni) as the binder phase, these bushings are produced via pressing and high-temperature sintering processes.
Widely used in petroleum machinery, pumps, bearing housings, and various rotating mechanisms, these bushings serve critical functions including shaft support and protection, wear reduction, sealing, and precision guidance. The thin-wall design addresses both lightweight requirements and durability under demanding operating conditions, making them ideal for applications with limited installation space or where weight sensitivity is a concern.
Tungsten carbide thin-wall bushings typically achieve a Rockwell hardness (HRA) of 89 to 93, far exceeding conventional steel or bronze bushings. In harsh environments involving particulate-laden media or slurries, their wear rate is extremely low, delivering a service life that is several times to more than ten times longer than tool steel bushings, significantly reducing equipment downtime for maintenance.
Tungsten carbide materials possess exceptional chemical stability, maintaining consistent performance in a wide range of corrosive media including alkalis, alcohols, ethers, acids, oils, and seawater. Even at elevated temperatures up to 500°C, the hardness remains essentially unchanged; at 1000°C, the material still retains relatively high hardness levels, making it suitable for high-temperature corrosive environments in chemical and petrochemical industries.
Tungsten carbide bushings offer extremely high compressive strength and bending strength (typically 1800-4000 MPa), enabling them to withstand prolonged heavy loads. With a low coefficient of thermal expansion and outstanding dimensional stability, the inner bore can be precision ground and polished to a mirror-like surface finish, ensuring high-precision concentricity and sealing performance with mating components.
The table below provides a direct comparison of performance differences among various grades of tungsten carbide thin-wall bushings, as well as their distinction from conventional steel bushings:
| Parameter | Grade YG6 | Grade YG8 | Grade YG15 | Conventional Steel Bushing |
|---|---|---|---|---|
| Primary Composition | WC 94% + Co 6% | WC 92% + Co 8% | WC 85% + Co 15% | Carbon steel / Alloy steel / Copper alloy |
| Hardness (HRA) | ≥ 91 | ≥ 90 | ≥ 87 | Approx. 50-60 (HRC) |
| Density (g/cm³) | 14.7 - 15.1 | 14.5 - 14.9 | 13.9 - 14.2 | Approx. 7.8 |
| Bending Strength (MPa) | ≥ 1,600 | ≥ 1,600 | ≥ 2,100 | Varies by material, generally lower |
| Typical Application Characteristics | High hardness, excellent wear resistance, suitable for general wear applications | Slightly better toughness, suitable for applications with impact loads | Superior toughness, ideal for high-impact, heavy-load applications | Suitable for low-speed, low-load, and ordinary environments |
| Service Life (Multiples) | Baseline (1×) | Approx. 1.2× (better toughness) | Approx. 1.3× (significant advantage under impact conditions) | Approx. 1/5 - 1/10 |
| Temperature Resistance | Stable up to 500°C | Stable up to 500°C | Stable up to 500°C | Generally ≤ 200°C, prone to oxidation and softening |
| Corrosion Resistance | Excellent (resistant to acids, alkalis, seawater, etc.) | Excellent | Excellent | Moderate (surface treatment required) |
Data source: Product literature from multiple tungsten carbide material manufacturers
Tungsten carbide thin-wall bushings support non-standard customization and can be manufactured according to customer drawings. The commonly customizable parameters are as follows:
| Customization Parameter | Customizable Range / Precision |
|---|---|
| Outer Diameter (OD) | Up to Φ780 mm maximum |
| Inner Diameter (ID) | Depends on outer diameter; ID tolerance can be precisely controlled to ±0.002 mm |
| Wall Thickness | Thin-wall design, customizable based on operating conditions |
| Length | 10 mm - 150 mm (further customization available) |
| Surface Finish | As-sintered, precision ground, or mirror-polished |
| Geometric Configuration | Straight bore, flanged, split type, grooved, stepped |
